Production Floor
Core Contradictions & Pain Points
In online material preparation mode, line changes require stopping to wait for material loading/unloading, verification, and shelving, with single line changes taking over 60 minutes.
Material preparation operations carried out simultaneously on the production line, frequent human errors such as material confusion, wrong feeder loading, and reverse polarity.
Feeders used with the line, during line changes large numbers of feeders are removed and reinstalled, causing insufficient feeder turnover and affecting line change efficiency.
Online material preparation under time pressure, insufficient verification of material polarity and station positions, high rejection rate after loading, or even reversed mounting.
Operators perform material preparation operations while the production line is running, distracting attention and creating safety hazards.
The binding relationship between materials and stations/feeder cannot be systematically managed, making it difficult to accurately trace when quality issues occur.
Solution Approach

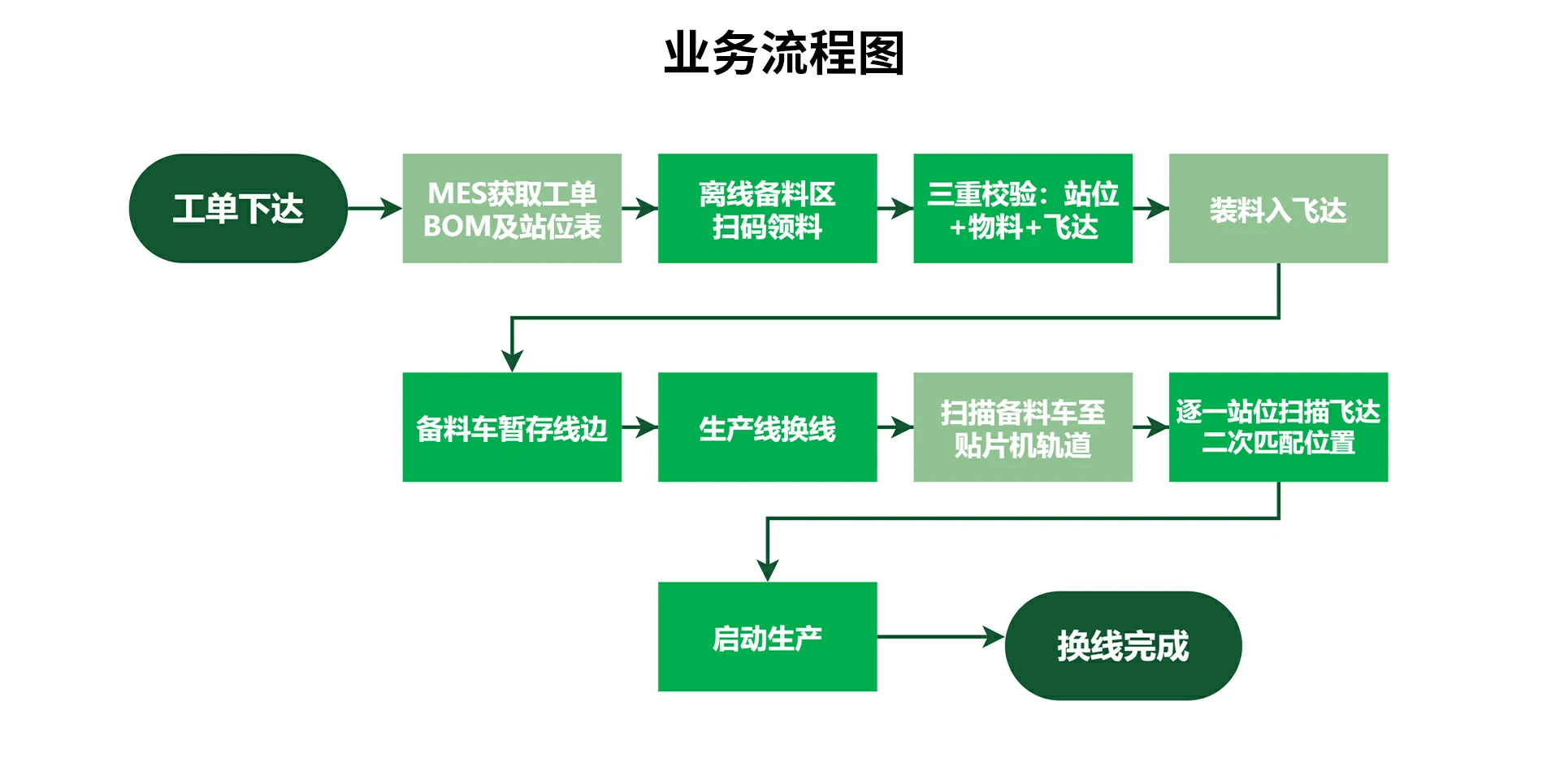

Establish 'offline pre-loading → online quick switch' two-stage material preparation mode:
Separate material preparation operations from the production line, complete feeder loading, verification, and validation for the next work order in advance at the line-side material preparation area.
Adopt unified specification feeder carts/material preparation carts, achieving 'immediate removal and loading, immediate unloading and installation' for the entire cart.
Perform triple verification by scanning station barcodes, material barcodes, and feeder barcodes to ensure 100% correct loading rate.
Establish feeder turnover library, unified scheduling according to work order requirements, reducing single-line feeder configuration quantity.
Transform 'downtime material preparation' to 'offline pre-loading', compress 'line change waiting' to 'whole cart replacement'.
Solution Core

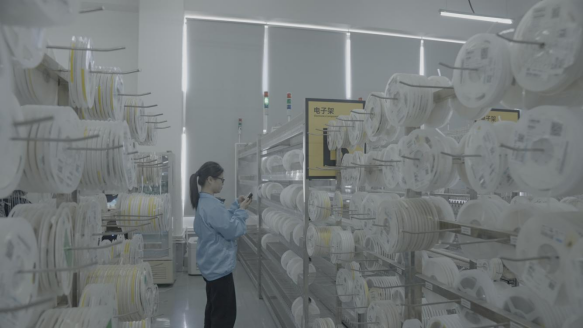

Offline Material Preparation Workstation
Set up dedicated material preparation area next to production line, equipped with material preparation workbench, scanner, label printer, and feeder rack

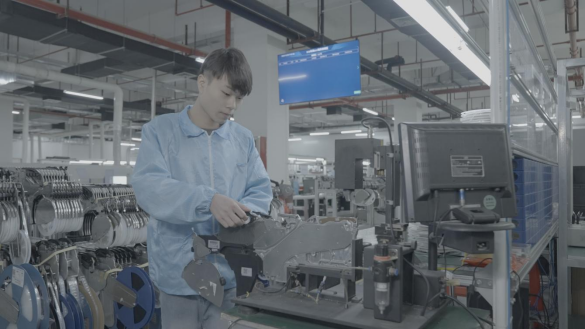

Material Preparation Verification System
Scan work order number → get station table → scan station code + material barcode + feeder ID one by one, system automatically verifies matching

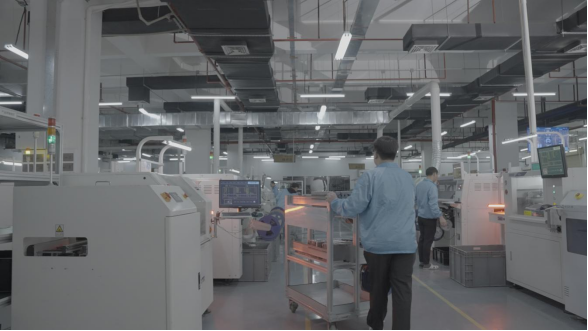

Material Preparation Cart/Feeder Cart
Standardized tooling cart, can hold all feeders required for entire production line (such as 80-120 units), with locking casters, supports whole cart pushing
Loading Error-Proof Terminal
When loading, scan material preparation cart QR code, system prompts the corresponding material preparation cart position for each station, scan feeder ID for second confirmation

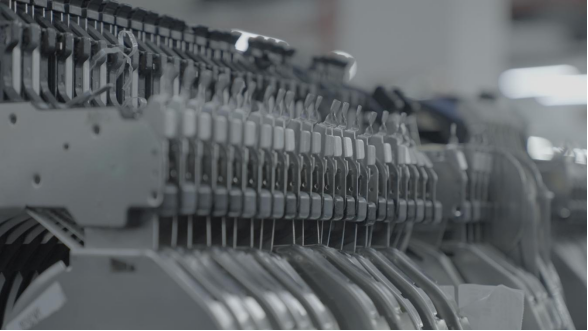

Feeder Lifecycle Management
Record usage count, maintenance records, and fault history of each feeder, associate with work orders and material batches, support forward/reverse traceability
Offline Material Preparation Workstation
Set up dedicated material preparation area next to production line, equipped with material preparation workbench, scanner, label printer, and feeder rack
Material Preparation Verification System
Scan work order number → get station table → scan station code + material barcode + feeder ID one by one, system automatically verifies matching
Material Preparation Cart/Feeder Cart
Standardized tooling cart, can hold all feeders required for entire production line (such as 80-120 units), with locking casters, supports whole cart pushing
Loading Error-Proof Terminal
When loading, scan material preparation cart QR code, system prompts the corresponding material preparation cart position for each station, scan feeder ID for second confirmation
Feeder Lifecycle Management
Record usage count, maintenance records, and fault history of each feeder, associate with work orders and material batches, support forward/reverse traceability
Implementation Path
Phase I: Current Status Research (1-2 Weeks)
Key Tasks
1、Count current line change frequency, average downtime duration
2、Inventory feeder quantity, specifications, existing material preparation methods
3、Determine pilot production line
Deliverables
《Current Status Analysis Report》
《Feeder Inventory List》
Phase II: Hardware Configuration (2-3 Weeks)
Key Tasks
1、Purchase / manufacture material preparation carts (according to maximum station count of production line)
2、Configure material preparation workstation (computer, scanner, label printer)
3、Plan material preparation area location and material rack layout
Deliverables
Material preparation carts in place
Workstation activated
Phase III: System Development (2-3 Weeks)
Key Tasks
1、MES develops line-side material preparation verification system
2、Achieve data interface with ERP/work order system
3、Develop loading error-proof terminal functions
Deliverables
Material preparation module online
Loading terminal available
Phase IV: Trial Operation and Promotion (2-3 Weeks)
Key Tasks
1、Pilot production line switches to offline material preparation mode
2、Count line change efficiency, wrong material rate improvement data
3、After process optimization, promote to entire line
Deliverables
《Trial Operation Report》
Standard Operating Procedure
Benefit Analysis
Single Changeover Downtime
Before:40-60minutes
After:10-15minutes
Wrong Material Incidents
Before:Avg.1-2Times/Month
After: Approaching zero
Feeder Utilization Rate
Before:1.5-2times station count
After:1-1.2times (shared turnover)
Operator Labor Intensity
Before: Intensive Rush Work
After: Offline Prep, Online Scan
Prod & Prep Interference
Before: Mutual Interference & Safety Risks
After: Completely separated
Material Traceability
Before: Manual Entry, Error-Prone
After: Auto Record Binding
